Sharper by Design
Steel Grit
Nupon Steel Grit delivers aggressive cutting action for fast, effective surface preparation. Its angular grains are engineered to strip coatings, remove scale, and create strong anchor profiles — giving your projects the sharp edge they demand.

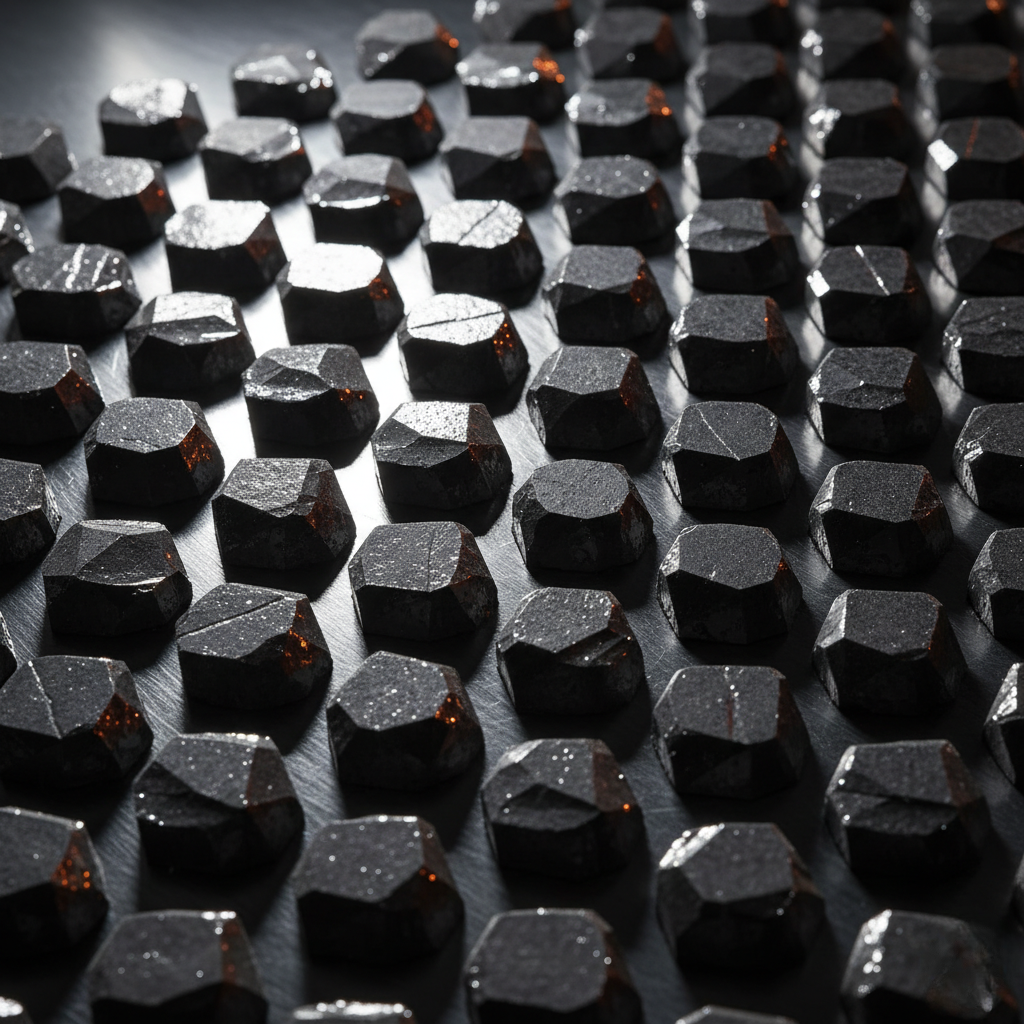

Nupon Steel Grit is an angular, high-carbon abrasive designed for aggressive cutting action and reliable surface profiling. Produced by crushing quenched steel shot, its sharp edges make it ideal for removing scale, rust, paint, and tough coatings.
To match different blasting requirements, Nupon offers three grit types:
GP (Steel Grit – Angular & General Purpose): Gradually rounds during use, offering balanced cleaning and durability.
GL (Steel Grit – Long Life): Retains angular shape longer for consistent cutting performance and extended recyclability.
GH (Steel Grit – High Hardness): Maintains sharp edges and maximum aggressiveness, ideal for tough surfaces and strong profiling.
With controlled hardness, accurate grading, and recyclable durability, Nupon Steel Grit ensures superior efficiency and surface results for industries that demand performance.
Steel Grit Grades
The Right Grade for Every Application

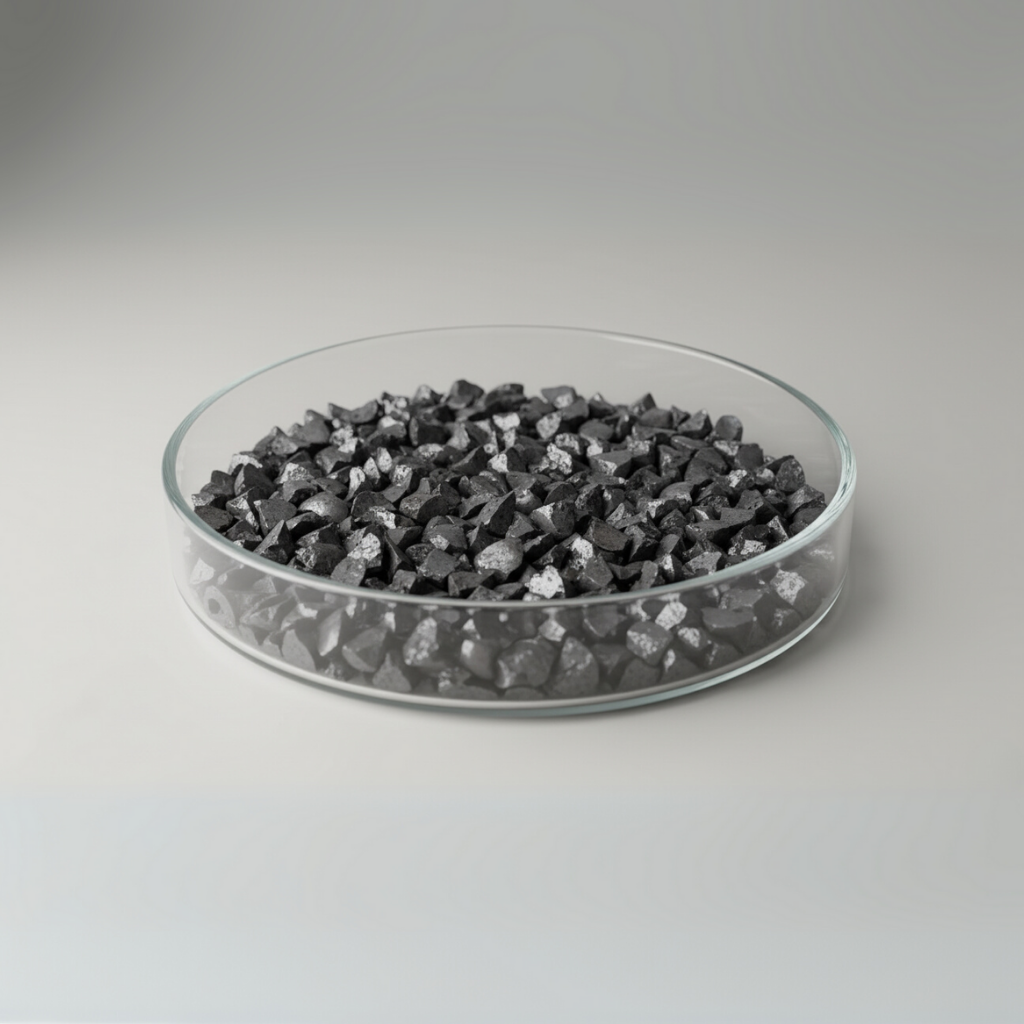

G-10 Steel Grit

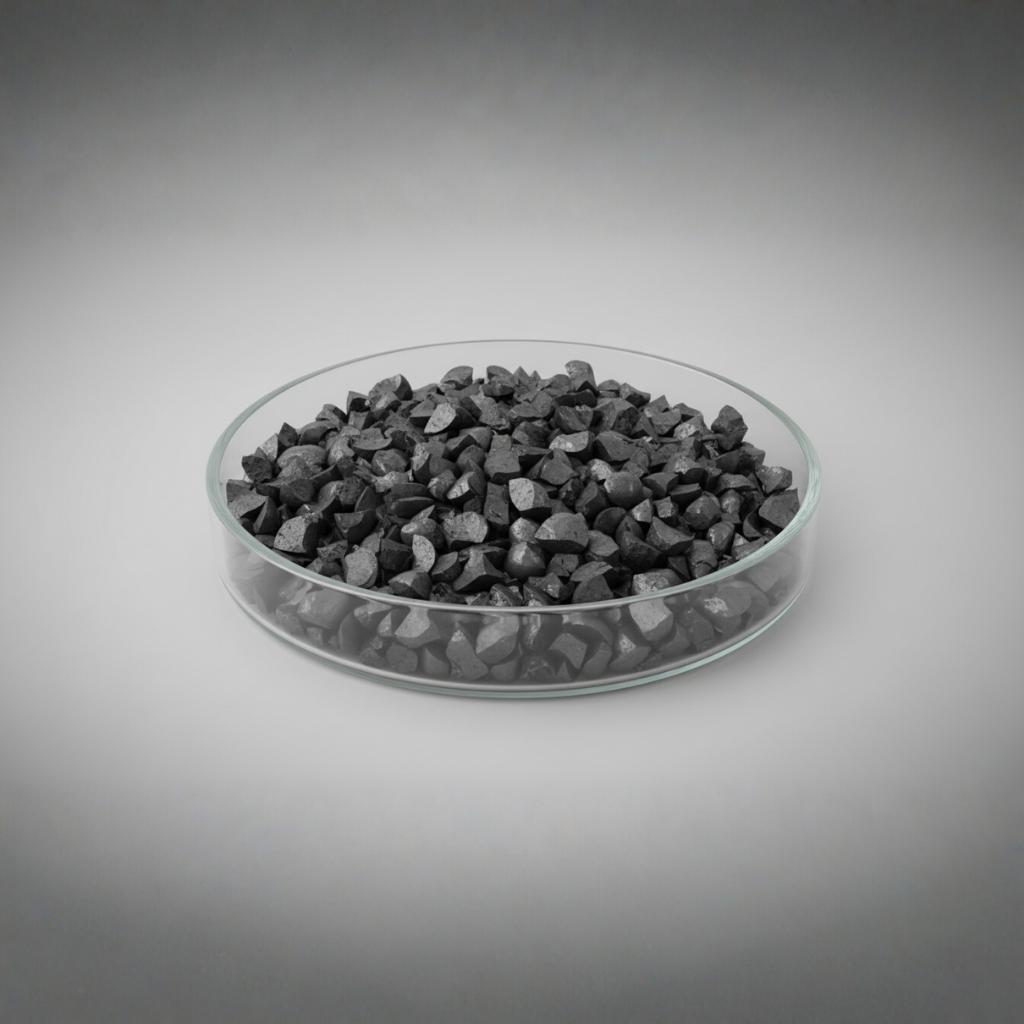

G-12 Steel Grit
G-14 Steel Grit

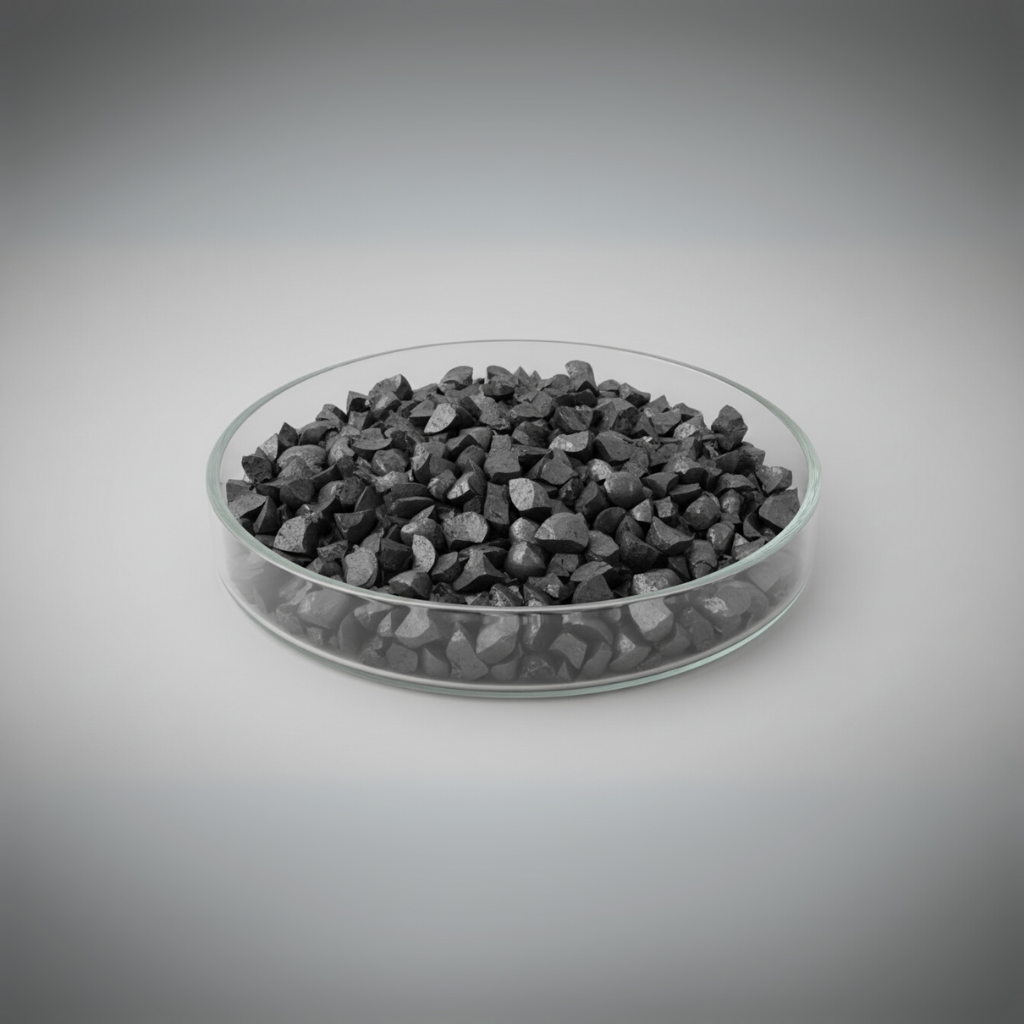

G-16 Steel Grit

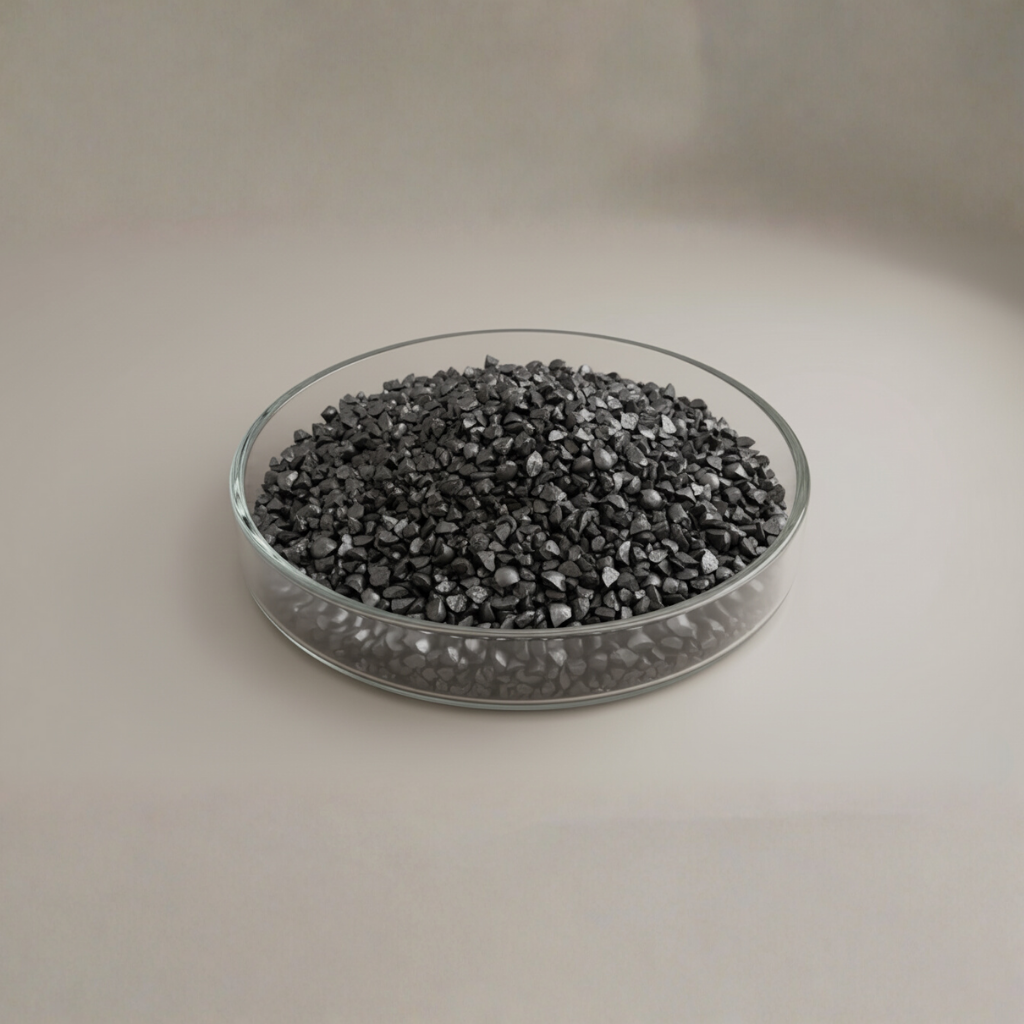

G-18 Steel Grit

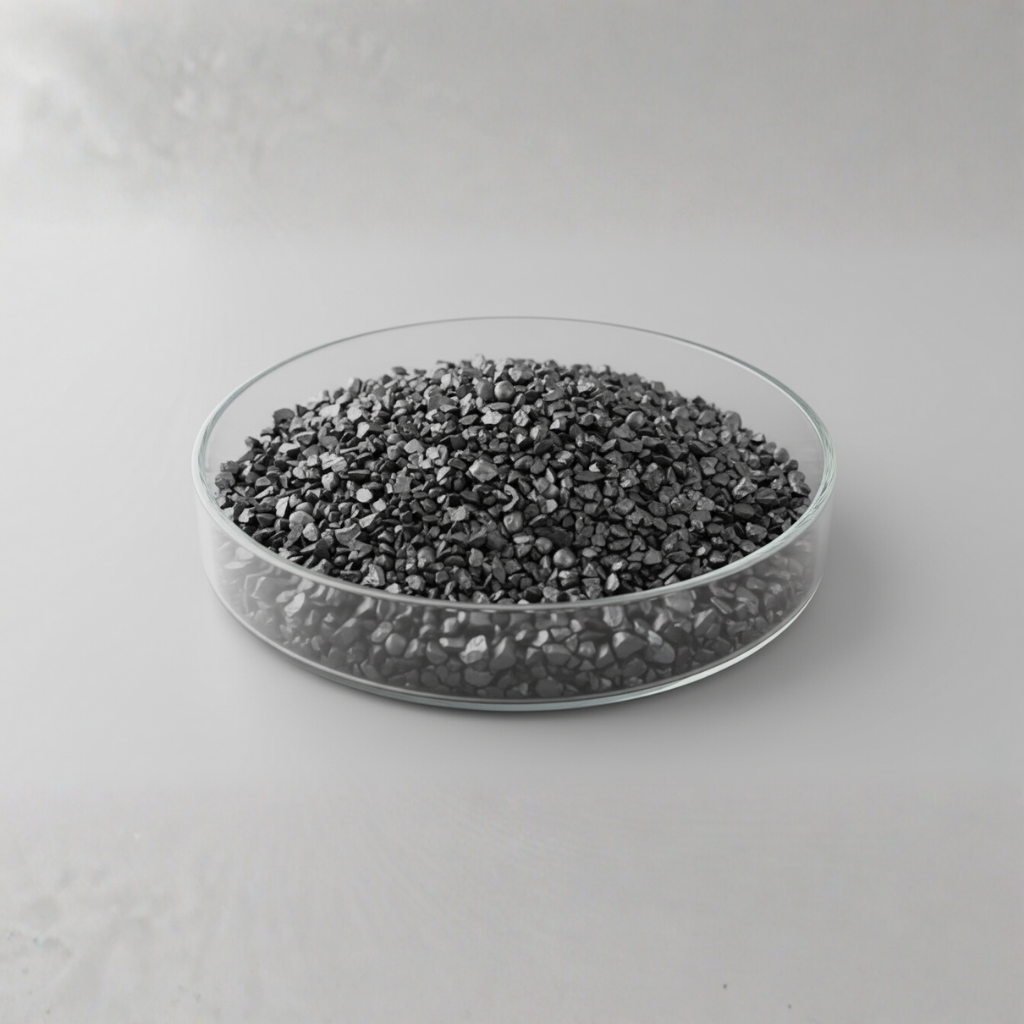

G-25 Steel Grit

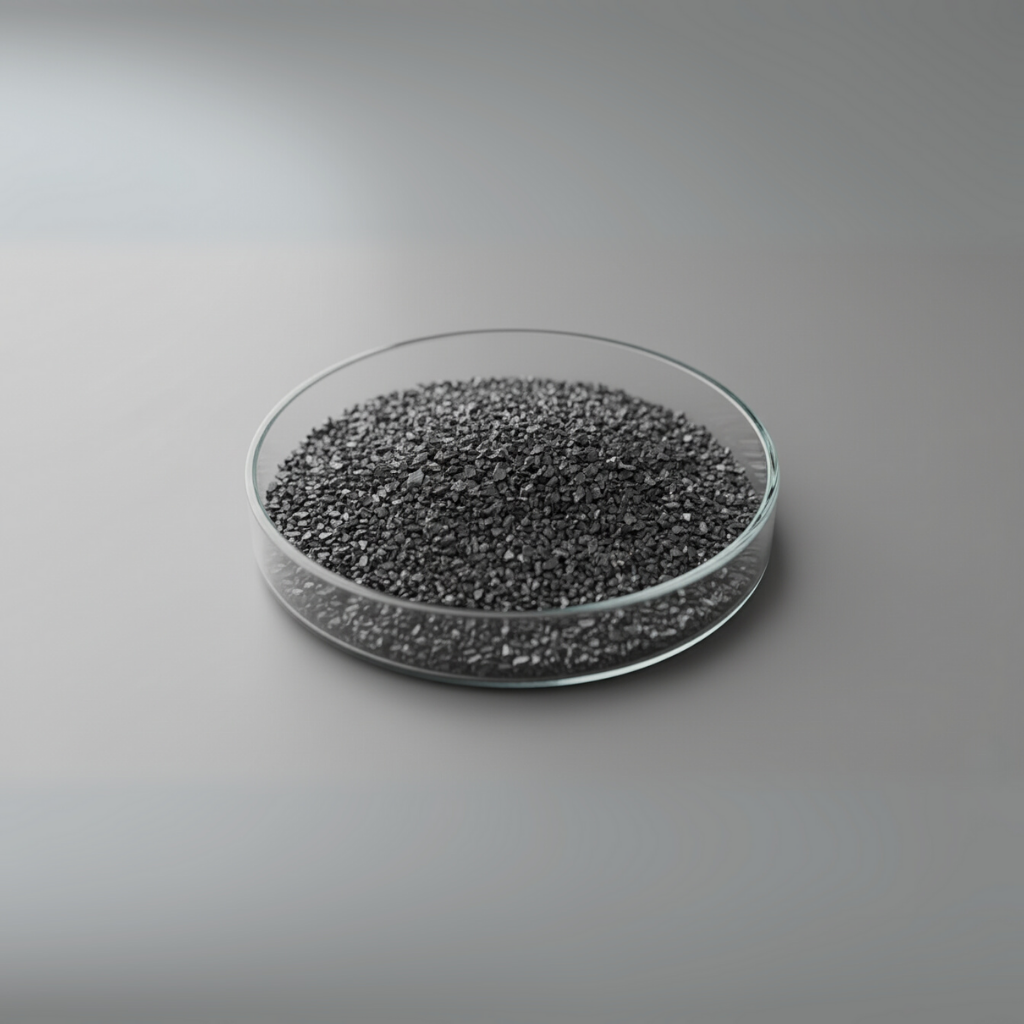

G-40 Steel Grit
G-50 Steel Grit

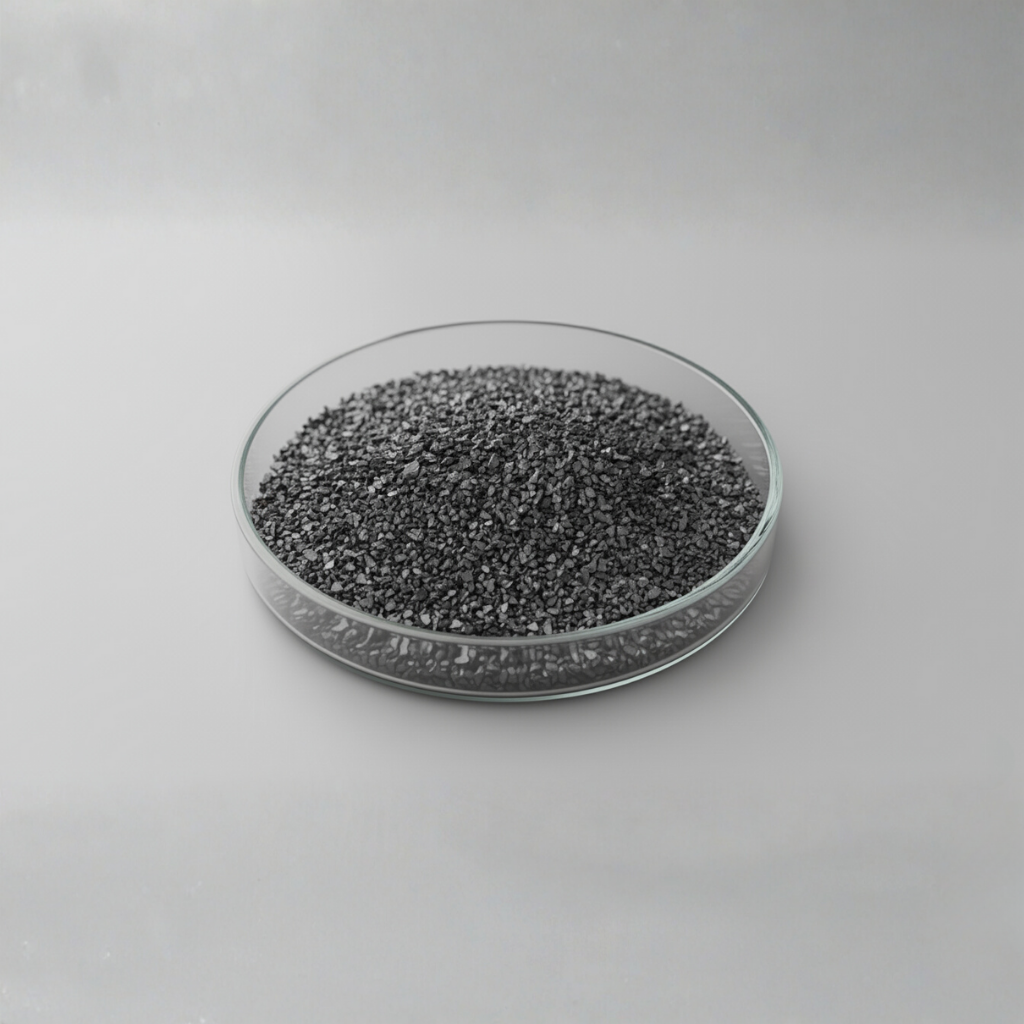

G-80 Steel Grit

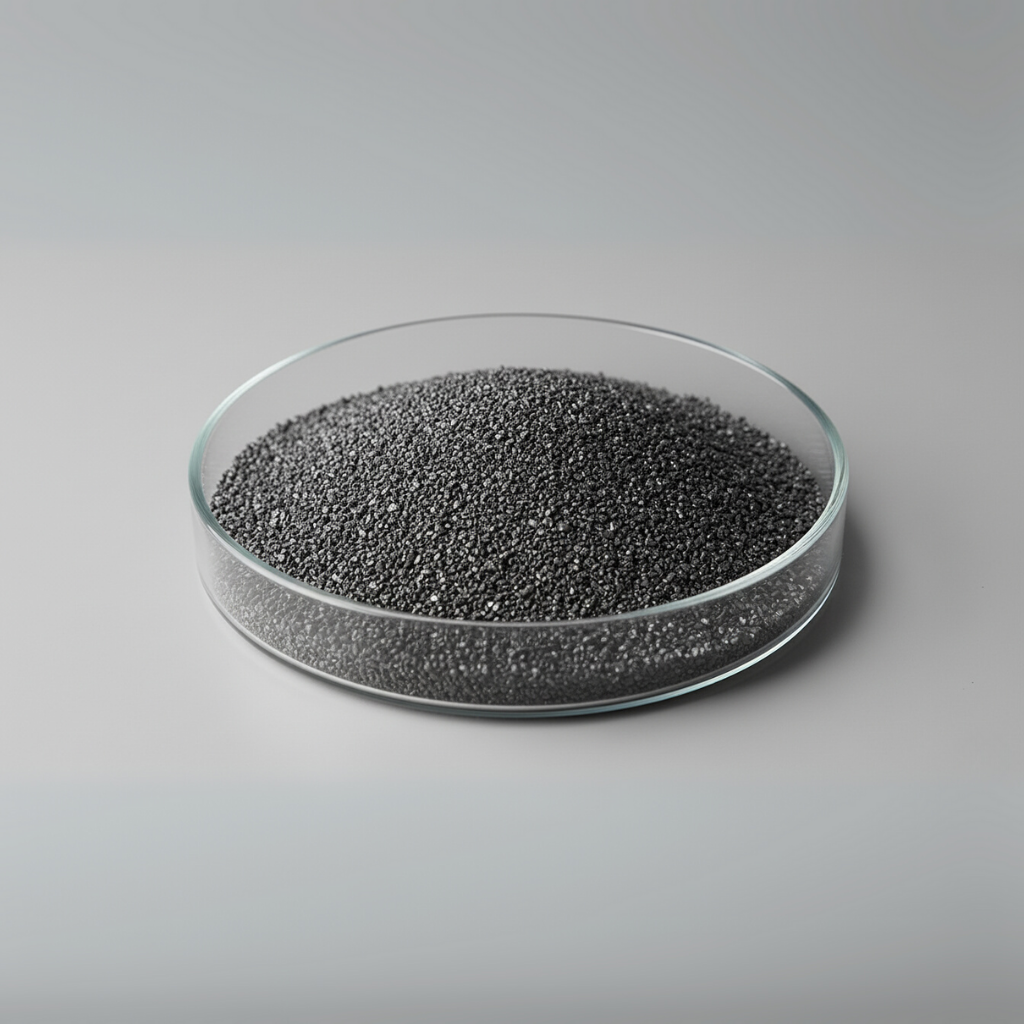

G-120 Steel Grit
Product Parameters
Engineered to Cut Above the Rest
| Parameter | Value |
|---|---|
| Chemical composition - C | 0.70–1.20% |
| Chemical composition - Mn | 0.35–1.20% |
| Chemical composition - Si | 0.40–1.20% |
| Chemical composition - S | ≤0.05% |
| Chemical composition - P | ≤0.05% |
| Average hardness (Conventional) | 42–50 HRC (399–509 HV) |
| Average hardness (Special) | 56–60 HRC (620–713 HV) |
| Average hardness (Special High) | 63–66 HRC (795–889 HV) |
| Hardness deviation | ±3.0 HRC or ±40 HV |
| Microstructure | Uniform tempered martensite or tempered troostite + dispersed carbides |
| Minimum density | 7.2 g/cm³ |
Particle Size Distribution
Sharper Profiles, Precise Grades
| Mesh | mm | G-10 (2.5) | G-12 (2.0) | G-14 (1.7) | G-16 (1.4) | G-18 (1.2) | G-25 (1.0) | G-40 (0.7) | G-50 (0.6) | G-80 (0.3-0.4) | G-120 (0.2) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 7 | 2.8 | all pass | |||||||||
| 8 | 2.36 | all pass | |||||||||
| 10 | 2.0 | 90%min | 80%min | all pass | |||||||
| 12 | 1.7 | 90%min | 90%min | 90%min | all pass | ||||||
| 14 | 1.4 | 90%min | 80%min | 75%min | all pass | ||||||
| 16 | 1.18 | 85%min | 75%min | all pass | |||||||
| 18 | 1.0 | 85%min | 70%min | all pass | |||||||
| 20 | 0.85 | 85%min | |||||||||
| 25 | 0.71 | 70%min | |||||||||
| 30 | 0.6 | all pass | |||||||||
| 35 | 0.5 | 80%min | |||||||||
| 40 | 0.425 | all pass | |||||||||
| 45 | 0.355 | 65%min | |||||||||
| 50 | 0.3 | 75%min | all pass | ||||||||
| 80 | 0.18 | 80%min | |||||||||
| 120 | 0.125 | 75%min | |||||||||
| 200 | 0.075 | 65%min | 90%min | ||||||||
| 325 | 0.045 | 70%min |
Applications
Cutting Power Across Industries
Still Have Questions?
Frequently Asked Questions
Steel grit is used for aggressive cleaning, coating removal, and creating surface profiles for paint or metallizing.
Steel shot is spherical and best for peening and smoothing, while steel grit is angular and better for aggressive cleaning and profiling.
Yes, steel grit can be reused multiple times, making it more cost-effective and eco-friendly than expendable abrasives.
Steel grit is used in construction, shipbuilding, automotive, energy, and heavy equipment manufacturing.
Steel grit is typically available in 40–50 HRC and 55–60 HRC hardness ranges, depending on application.
Nupon supplies a full range from G10 to G120 to cover all surface preparation needs.
Nupon’s steel grit is manufactured with strict quality standards, ensuring sharp cutting edges, consistent sizing, and long life.
Yes, Nupon provides technical support to match the right grade to your blasting or coating preparation needs.
Nupon Steel Grit delivers aggressive cleaning action and recyclability, reducing abrasive consumption and blasting costs.
Yes, Nupon Technology Phils. Corp. handles bulk orders and offers tailored supply solutions for industries of any scale.
Ready to Cut Through the Toughest Jobs?
Get the Right Steel Grit Grade for Your Application.
Nupon Technology Phils. Corp. delivers high-performance steel grit engineered for aggressive cleaning and sharp profiling. From heavy rust removal to precise coating preparation, we provide the grit grade that powers your projects forward.
